Emergency Water Supply for Earthquake Prone Regions
Wellington, New Zealand
Client
Wellington Water
Plant Capacity
20L per person/day
Technology
Filtration, UV Disinfection, Chlorination
Water Source
River, Stream, Bore
Quality Issue
Seismic Risks
Customer Need
Strengthening Emergency Water Supply During Seismic Risks
To strengthen the region’s emergency water supply, Wellington Water prioritised ensuring the safety of drinking water against seismic risks. The extensive water network, spanning 1400kmยฒ across three plants, highlighted the necessity for a resilient contingency plan. Of particular concern were lengthy supply lines crossing known earthquake faults, posing threats to water supply.
Wellington Water contracted FILTEC to construct 22 emergency water supply treatment containers. Each container is capable of supplying enough water to mobile delivery trucks allowing everyone to access 20L per person daily within 1000m of homes, following an emergency event.
What We Did

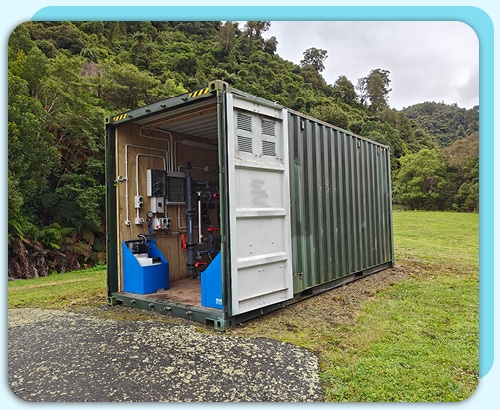

Supplied 22 Containerised Water Treatment Plants
FILTEC were contracted by Wellington Water to build and supply 22 containerised emergency water supply plants, comprising of 13 surface water and 9 bore water treatment facilities.

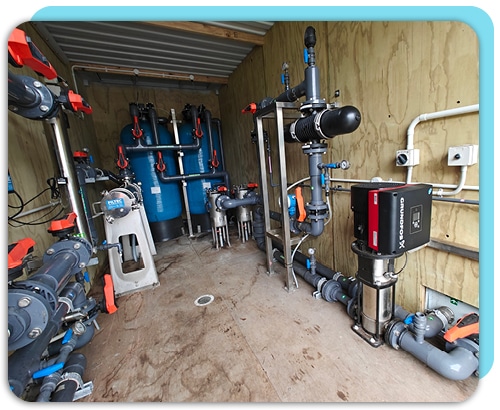

Each plant boasts a comprehensive water treatment process incorporating a suite of technologies, such as disc filters, bag filters, 3 log protozoa cartridge filters, 3 log protozoa UV disinfection, and chlorination.
Installed Comprehensive Water Treatment Processes
Additionally, an extra layer of carbon filters was integrated to address potential taste and odour concerns in surface water. The emergency water supply infrastructure not only meets but surpasses industry standards. Its design prioritises rapid deployment and user-friendly operation, a critical factor in emergency scenarios.
Built Versatile Plants With Easy Operation
FILTEC efficiently addressed Wellington Waterโs requirements by creating versatile emergency water supply containers that are maintained, managed, and operated by Wellington Water.
During an emergency, Wellington Water can manage an above-ground network of over 300 bladders and tap stands, drawing water from emergency supply containers to provide safe drinking water to communities.
The Result
Enhanced the Resilience of the Water Supply Network
The implementation of emergency water treatment plants has greatly enhanced Wellington’s resilience in water supply emergencies. Forming an above-ground emergency water network, these systems provide a rapid response to source, treat, and supply water to affected communities.
Their portability allows for relocation to areas facing water shortages, bolstering Wellington’s adaptability during crises. This collaborative initiative underscores Wellington Water’s proactive investment in community well-being and FILTEC’s crucial role in providing tailored, resilient emergency water solutions for the region’s distinct challenges.
