SATI FDD Dirt Bag Filter
The SATI FDD Dirt Bag filters are suitable for use with process water on average charge of suspended solids.
The FDD are Dirt Separator Filters suitable for General Industry, Food & Beverage, HVAC/R and Wastewater in order to keep the circulating water clean.

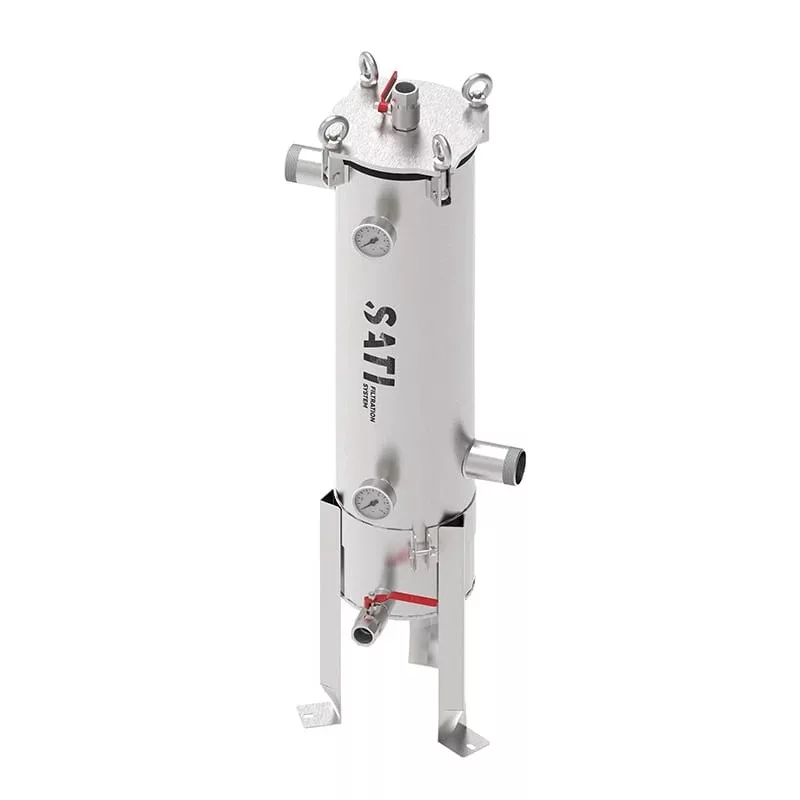

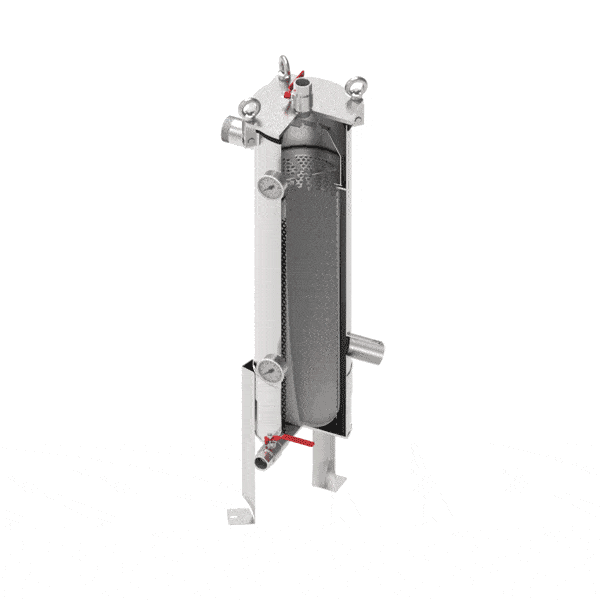

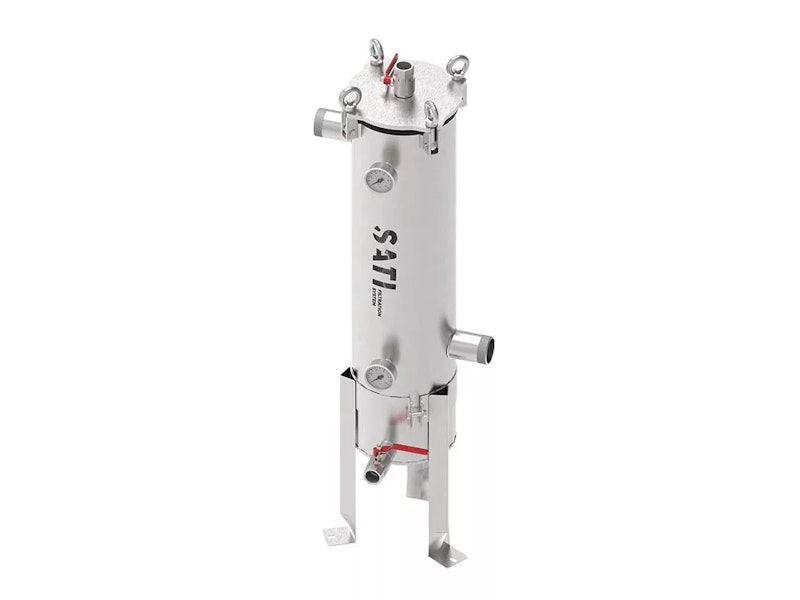

Made of stainless steel, the FDD Dirt filters are equipped with an internal filter bag supported by a stainless steel mesh basket.
The filters are built in two sizes (S and D) and are supplied with a manual vent valve on the lid, a manual emptying valve on the bottom, two pressure gauges and an adjustable support stand. Furthermore, these solutions offer a very wide range of filtration ranging from 200 to 1 ยตm.
The closure of the lid is made with folding eyebolts to facilitate operator cleaning/replacement of the filter bags.
Remove unwanted particles from the pipeline flow with 200-1micron bag filtration options
Designed for maximum flow rate and minimum pressure drop
Flow rate 8-70m3/h
Two sizes available S = 16L & D = 32L
Available in 304SS or 316SS
Variety of connection types and sizes available
Optional Extras
- Differential Pressure Kit
- Magnetic Kit
