Salamander Hydraclam Monitoring System
The Hydraclam is a crucial component of the Clamnet system, which includes sensors, telemetered data loggers, a mobile app, and a web portal. It’s designed to be versatile and efficient, capable of monitoring and reporting turbidity, chlorine, conductivity, temperature, and pressure data from hydrants or other points on the water mains network.
Hydraclam Monitoring System

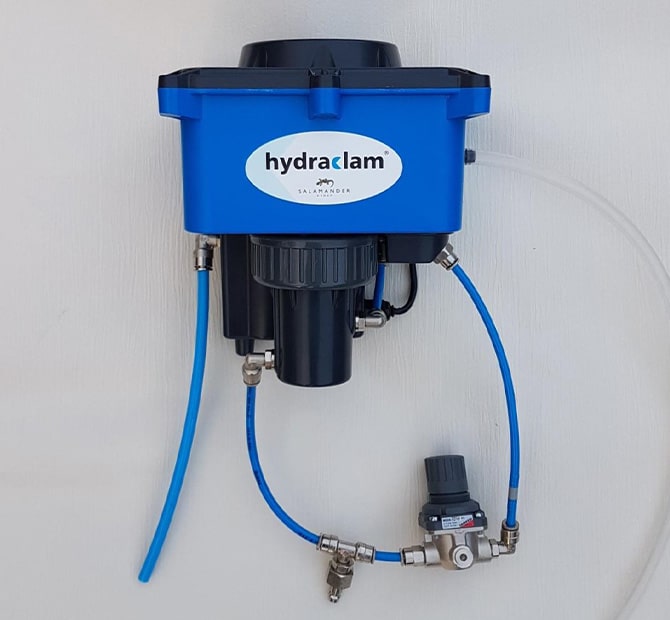

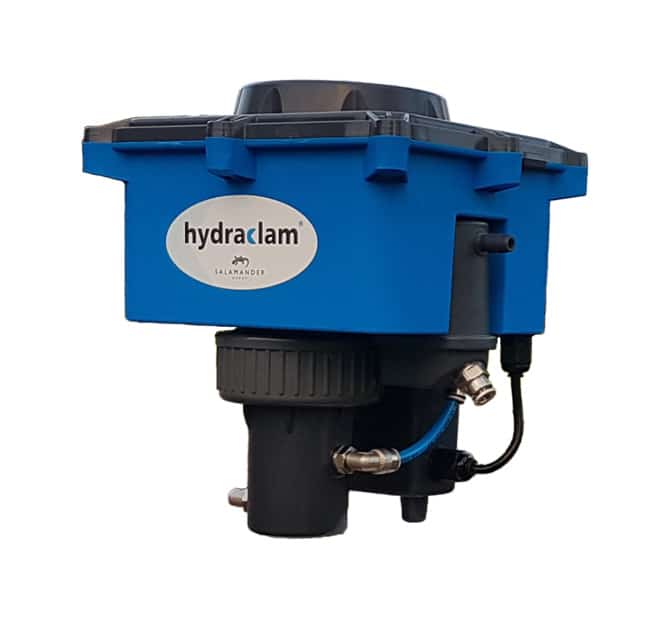

The Hydraclam is a crucial component of the Clamnet system, which includes sensors, telemetered data loggers, a mobile app, and a web portal. It’s designed to be versatile and efficient, capable of monitoring and reporting turbidity, chlorine, conductivity, temperature, and pressure data from hydrants or other points on the water mains network. Whether used independently or in conjunction with other sensors connected to the Clam RTU, the Hydraclam greatly enhances the capabilities of any Smart Network dedicated to maintaining drinking water quality.
Easy Setup, No Extra Infrastructure Needed
The Hydraclam has undergone a thorough redesign to cater to the global market, and one of its standout features is its simplicity of operation.

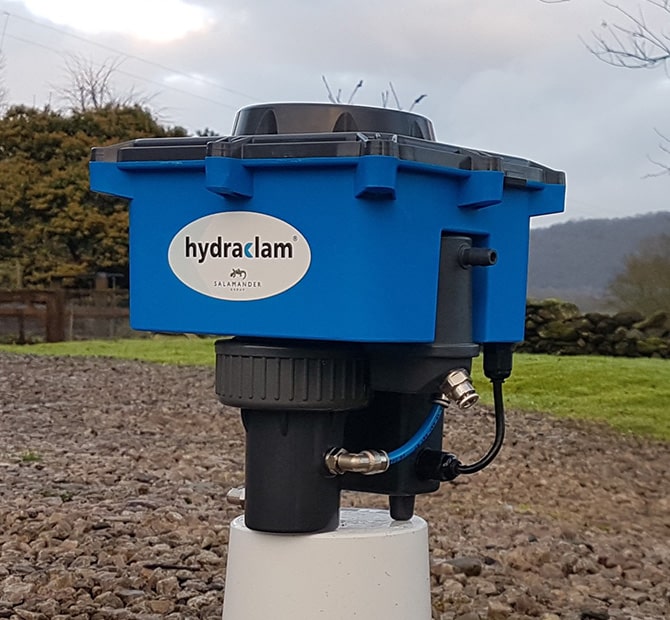

- Installation is straightforward: just connect it via a 6mm hose to any part of the water distribution network.
- It communicates via the 4G network, handling everything from configuration to firmware upgrades.
- Equipped with a large battery pack, it can also be hooked up to external power sources like solar panels.
Customisable Sampling Process
The Hydraclam’s sampling process includes a valve that can be adjusted to ensure that the water being analyzed is fresh, avoiding any stagnant water in the hoses or riser pipes. Additionally, its unique flushing control, which is patented, can be customised through the website.
Detects Minute Turbidity Levels
One of its notable capabilities is its ability to detect extremely low levels of turbidity, making it invaluable not only for identifying compliance issues but also for tracking sediment movement – a crucial aspect of proactive network management.
Uninterrupted Operations
Thanks to its low power consumption, the Hydraclam can operate remotely without interruption between recommended service intervals. Its bidirectional communication features enable firmware upgrades, configuration adjustments, remote diagnostics, and routine data uploads to the Clamnet Portal.
Data from Hydraclam can be stored and viewed on the very secure Clamnet Portal. With flexible device management and visualisation tools the portal can manage large Clam fleets.
- API – Data can be transferred via our freely available API for incorporation into corporate SCADA systems.
- Direct integration to corporate SCADA โ Rather than use the Clamnet server data can be transferred to a server on the customerโs own premises and from there to the customerโs destination of choice.
- Access the water via hydrant point enabling rapid deployment and recovery
- Measurement of turbidity, conductivity, pressure and temperature all in one device
- High resolution turbidity sensor designed specifically for potable water
- Patented flushing control to ensure water from the main is sampled
- Bi-directional 4G cellular communications for remote configuration, data upload and alarming
- Bluetooth mobile app for local set up, control and data collection
- Submersible robust IP68 enclosure
- Powerful Clamnet Portal data management and visualisation
- A cornerstone for water quality Smart Networks
- Freely available API for data transfer
- Direct integration to SCADA – uploading to server on customerโs own premises
