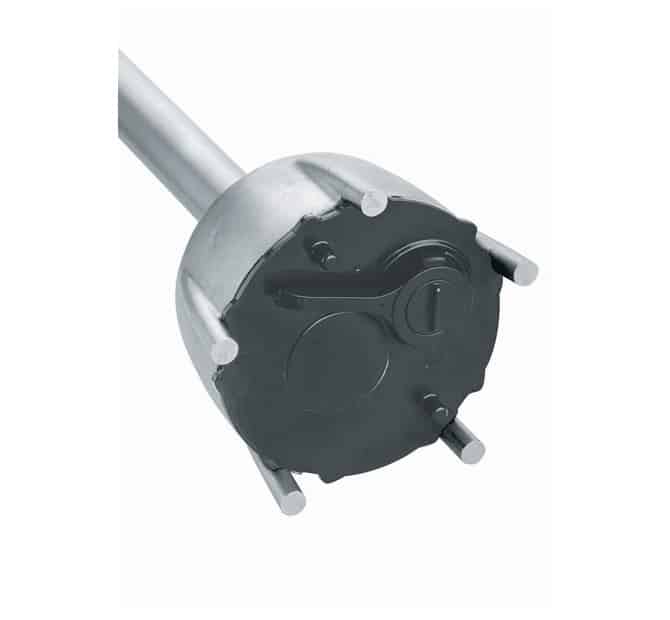

Hach SONATAX sc Sludge Blanket Level Probe
The Hach SONATAX sc is designed for use in primary and secondary clarifiers, thickeners in wastewater treatment, raw water clarifiers, sludge settling basins in water treatment, and special industrial applications.
The digitalised SONATAX sc probe features an ultrasonic measurement system, which automatically scans a range of frequencies to find the ideal settings for the application.
The built-in software can disregard signals reflected from tank structures such as pipes, rods, etc. Besides this temperature compensation, and position sensor ensure accuracy and
reliability.
The Hach SONATAX sc Sludge Blanket Level Probe features a wiper with a magnetic connector that effectively cleans the probe. No o-rings to replace and no tools needed to replace the wiper blades.
A visual performance LED indicator light on the SONATAX sc probe provides assurance of proper performance at a glance.
Expand systems as needed without additional controller investment. Hach sc digital controllers can accept from two to eight probes, accommodating any combination of parameters with Hachโs line of digital probes.
The Hach SONATAX sc Sludge Blanket Level Probe can decrease your power costs by automatically actuating pumps to control pump rates for WAS/RAS. Other benefits
of continuous blanket level measurement include early warning information of solids wash-out potential at the outlet and optimized sludge extraction to minimise dewatering and final disposal cost.
Applications
- Wastewater
- Industrial water
- Superior accuracy
- Reduced maintenance with innovative wiper design
- Visual performance indicator enhances troubleshooting
- Multi-probe, multi-parameter capability
- Increased efficiency saves energy and money
Accessories
LZY714.99.42120 Fixed Point Mount for probe. For mounting probe at a fixed location.
LZY714.99.00030 Extension pipe 1m (3.3 ft.) For fixed point mount LZY714.99.42120
LZY714.99.00040 Extension pipe 2m (6.6 ft.) For fixed point mount LZY714.99.42120
LZY714.99.62160 Pivot Mount for probe (0.35m (1.15 ft.) extension pipe) For mounting probe on a pivot assembly for clarifiers with skimmers.
LZY714.99.72160 Pivot Mount for probe (1 m (3.3 ft.) extension pipe) For mounting probe on a pivot assembly for clarifiers with skimmers.
LZX414.00.73000 SONATAX sc Rail Mounting Assembly Rail Mount must be ordered with either LZY714.99.42120 or LZY714.99.72160 or LZY714.99.72160.
LZX914.99.11300 Chain Mount Assembly for SONATAX sc
9220600 Sun Shield for sc200 controller
LZX328 Wiper Blades for Probe, replacement only, pkg. of 5
Cable Accessories
5796000 7.6 m (25 ft.) Extension Cable
5796100 15.2 m (50 ft.) Extension Cable
5796200 30.5 m (100 ft.) Extension Cable
Maximum total length of cables: 50 m (164 ft.)
| Models | 2976300, LXV431.99.00002, 5773000 |
|---|
